50000L Diesel Tanker Trailer

Product Description:

The best quality 50000L Diesel Tanker Trailer can realize the mechanization of loading, unloading, transportation and storage, which not only saves the labor force but also saves the packaging materials and the transportation cost. CIMC water tanker trailer axles can be Fuwa / BPW with different tonnages by your need with price differences. CIMC diesel tanker trailer is used for liquid cargo transportation, such as Gasoline, Diesel oil, Crude oil, Lubricating oil and other liquid cargo.

The volume varies of 50000L Diesel Tanker Trailer widely from 10 cube meters to 70 cube meters, we can manufacture it according to your needs. The suspensions can be Air suspension, mechanic (leaf spring suspension), bogie suspension, etc. The diesel tanker for sale inside can be isolated compartments or single compartment by your needs.

CIMC 50000L Diesel Tanker Trailer for Sale In Gabon Lucina terminal

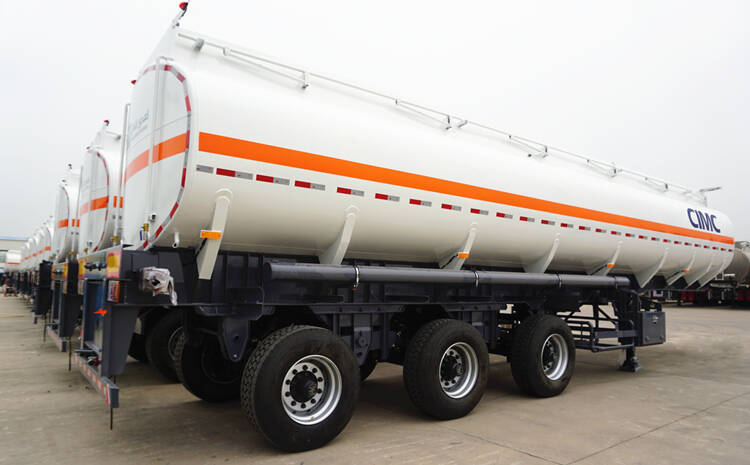

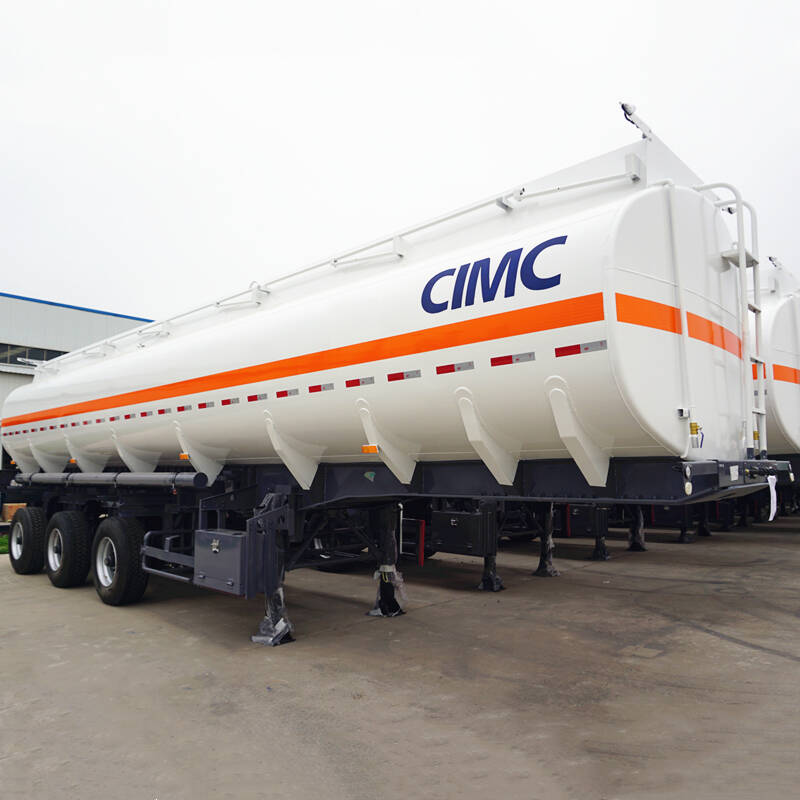

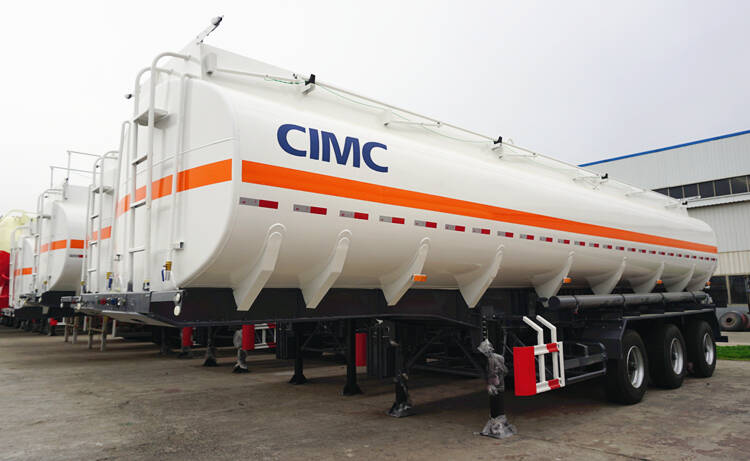

Tri Axle Diesel Tanker Trailer for Sale Price

Specification:

Dimension: 12100mm*2500mm*3900mm(the exact size depends on the final design)

Volume: 50000liters

Application:  transport Fuel, Oil, Diesel

Tank body:

Material: Carbon steel

Tank body and separate compartment plate:  6mm

Compartments: 1 to 7 compartments, based on customer needs

Manhole cover: Carton steel or Aluminum alloy API manhole cover 500mm (diameter)

Discharge valve: Diameter is 3 or 4 inch

Bottom valve: Aluminum  API Pneumatic Bottom Valve

Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment

Chassis:

Axles: 3 units, FUWA/BPW/CIMC/other

Landing Gear: JOST brand

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Suspension: Mechanical suspension or air suspension

Brake System: WABCO

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
