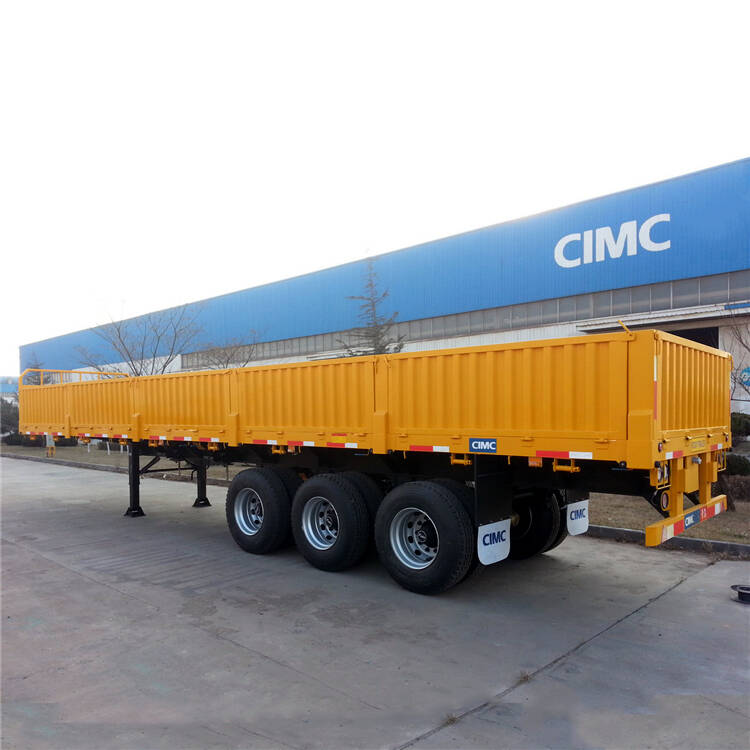

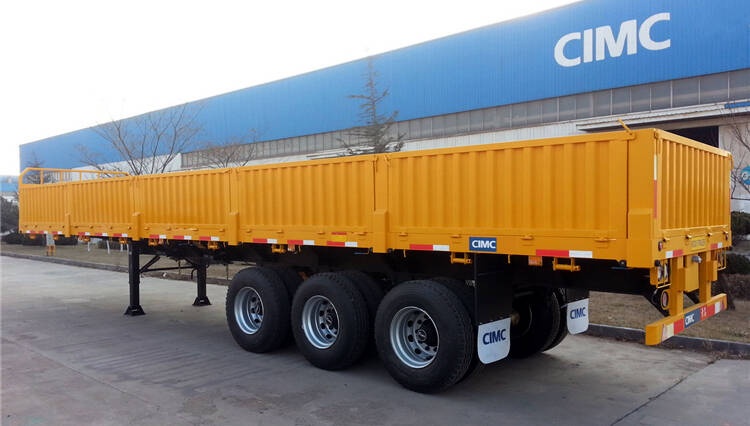

trailer:3 axle container flatbed trailer with side panel
Application :to carry container, construction material or other bulk
Loading capacity:50 tons
Axles:3 *13 tons
CIMC Tri-axle Side Wall Semi Trailer are one of the most popular and sought-for means of transport for diverse cargo( like pipes, plates, boards, long non-divisible load, reels and coils, plates, metal, bricks, cement bags and other construction materials ) which can be carried in any weather and road conditions.
CIMC trailers feature durability in off-road conditions, they are cross-functional for the carriage of commercial and industrial cargo up to 50 tons on roads of any category. 40ft container flatbed trailer with side panel, it is a special options for the reliable fixation of cargo: hooks, clamps or container locks. Comfortable operation is ensured by drop sides and telescopic bolsters.
Advantages of 40ft side wall semi trailer:
1>We adopt premium steel material, advanced technology and strict production to our flat bed trailer. The trailer chassis automatic submerged arc welding to ensure the welding seal solid.
2>The floor is covered with corrugated sheet metal.
3>The front is reinforced and ensures driver's safety should cargo set off after hard braking.
4>Good brake effects. Axles are equipped with WABCO emergency brake valve also dual-brake chambers also widen brake pads.
Sidewall Height: 600mm
Max. Payload: <50T
Application: Coal/Cargo/Containers Loading
Material: Q345B Steel
Bottom Platform: 3mm-thick checkered plate
King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Support leg: JOST brand
Suspension: Airbag / Mechanical / bogie suspension
Tires: 12.00R22.5/315 80R22.5(Specially designed and for oversea markets)
Brake System: WABCO
Electrical System: 24-volt lighting system
