Material: Steel/Aluminum Alloy
Suspension: Mechanical / Air Suspension
Landing gear: JOST optional
King pin: 2"(50mm)or3.5"(90mm) JOST
CIMC powder tanker body adopts a frame-type teaming process to make the left and right rollers dock. This kind of process equipment can ensure that the tank grouping process will not be deformed and the appearance is beautiful.
The size of the bulk powder tankers silo is exactly the same as the design size, which can make the barrel have an ideal stress layout, so that the tank will not easily crack.

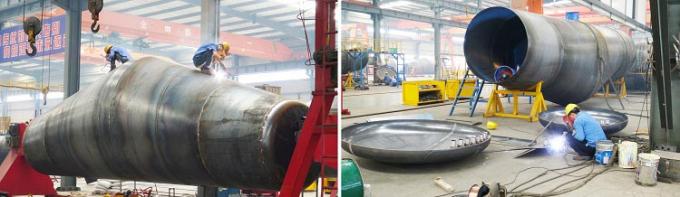

CIMC powder tanker adopts the latest advanced automatic splice plate machine to weld the steel plate with double-side, that ensure the high quality of welding seams, long service life and good appearance in tank body, long service life.

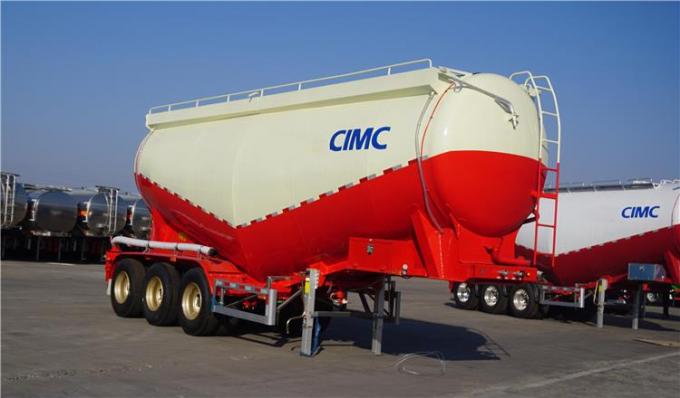

CIMC 3 axle powder tanker for sale

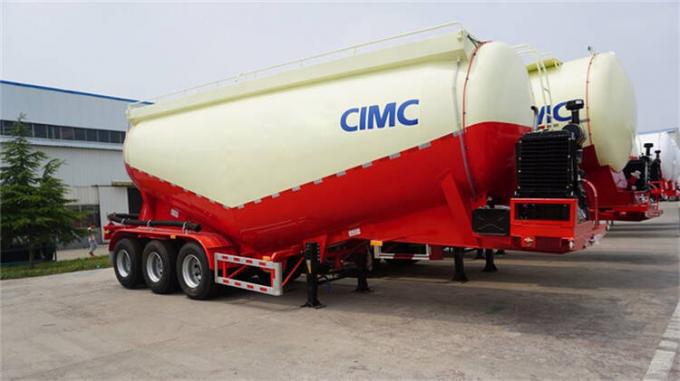

CIMC 60 tons bulk cement tanker trailer for sale

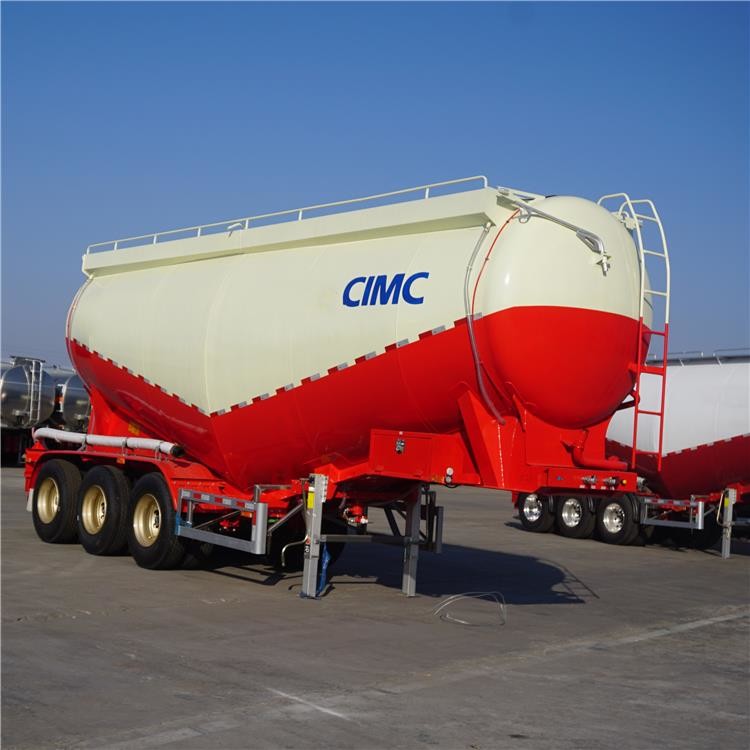

50cbm bulk cement tanker trailer
1. Before opening the bulk powder tankers feed port, you must first open the pressure relief valve and the ball valve of the intake pipe. After removing the residual air in the tank, open the material cover to avoid injury.
2. Always pay attention to whether the pressure gauge is working properly, to prevent the pressure gauge from malfunctioning and overpressure, and the bulk cement tanker trailer to burst and leak.
3. Always check the safety valve to ensure that the pressure relief starts at 0.2Mpa, and the pressure in the tank must not exceed 0.2Mpa.
4. Always listen to the sound of cement powder truck power take-offs and air compressors. If there is abnormal sound, stop the machine immediately to eliminate the fault.
| Dimension: | 11.8x2.5x4m |
| Tank Body | |
| Tank thickness | 4 mm |
| Front & end plate | 4 mm |
| Tank rated pressure | 0.2Mpa |
| Discharging System | |
| Diesel Engine | Model 4102 Diesel |
| Air Compressor | 12 m³ one unit double cylinders compressor |
| Discharging valve | 4 inch butterfly valve |
| Discharging pipe | 1pcs, 6m/each |
| Manholes | 2 pcs |
| Trailer Chassis | |
| Main Beam | Welded design, |
| Axles | 3 axles |
| Landing gear | 28T |
| Kin pin | 3.5 inch high tensile bolt-in king pin |
| Suspension | Mechanical suspension with 10 layers leaf spring |
| Tire | 12.00R22.5 , |
| Braking system | WABCO emergency valve; |
| Electrical system | Voltage: 24V |
| Tool box & tire carrier | One tool box , 2 pieces tire carrier |
| Light & reflector | Rear light, rear reflector, turn indicative light, side reflector,fog lamp,number plate light |
