CIMC 5 Axle 80T End Tippers Semi Trailer

CIMC 5 Axle 80T End Tippers Semi Trailer

18500 USD

Different Parameters, Different Price. Price Reference Only.



5 Axle 80T End Tippers Semi Trailer will help you move and unload bulk cargo in a very simple and effective way. Especially when dealing with large jobs.

SKU: 5 Axle 80T End Tippers Semi Trailer
GTIN: 6975766100520
MPN: ZJV9505113
Brand: CIMC

5 Axle 80T End Tippers Semi Trailer Description:

5 axle 80T end tippers semi trailer is using 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

Self-weight: We can emphasize the weight of our trailers to our customers, weigh more weight and better carrying capacity.

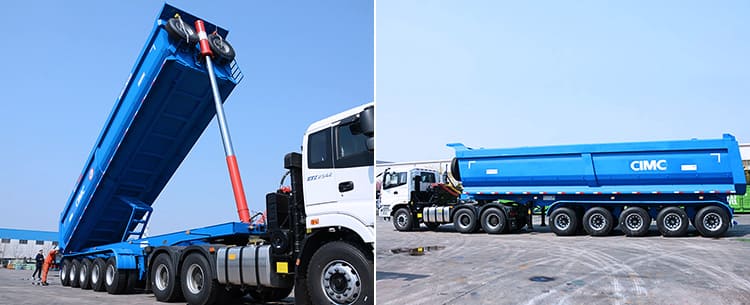

5 axle 80T end tippers semi trailer

5 Axle 80T End Tippers Semi Trailer Heavy Type for Sale Near Me with Capacity

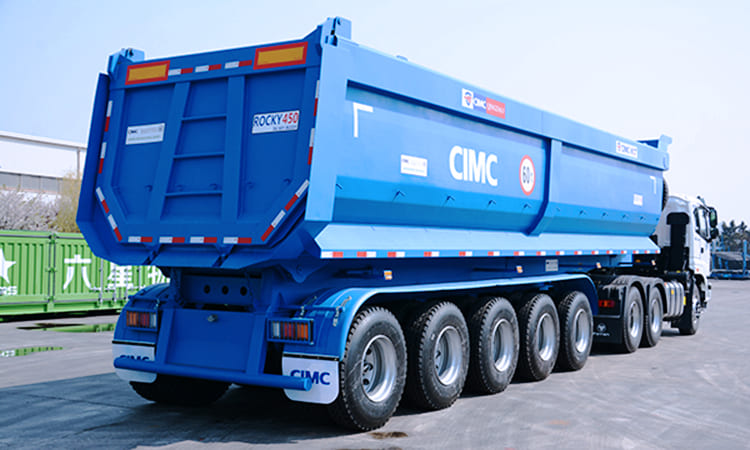

5 axle 80T end tippers semi trailer

5 Axle 80T End Tippers Semi Trailer Heavy Type for Sale Near Me with Capacity



5 Axle 80T End Tippers Semi Trailer Specification:

Dimension: 9300mmx2500mm x3700mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume: 80 Tons

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

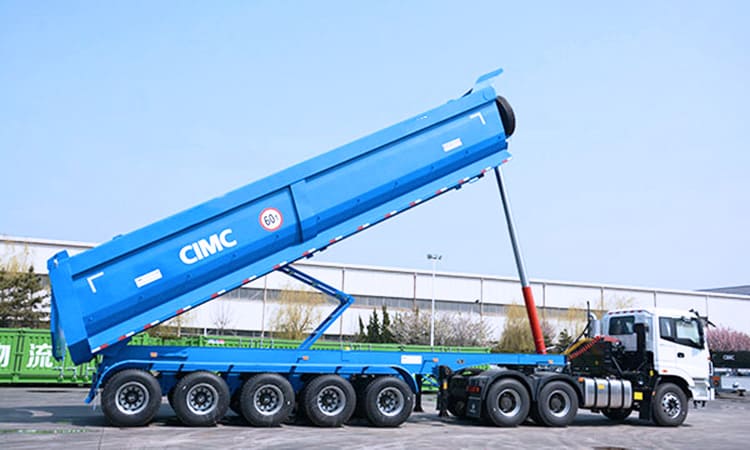

5 axle 80T end tippers semi trailer



5 Axle 80T End Tippers Semi Trailer Advantage:

1. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

2. Double-plate main beam for tipper semi trailer, which has a stronger carrying capacity, it is not easy to damage.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. The leaf spring is widened and thickened, the shock absorption effect is good.
