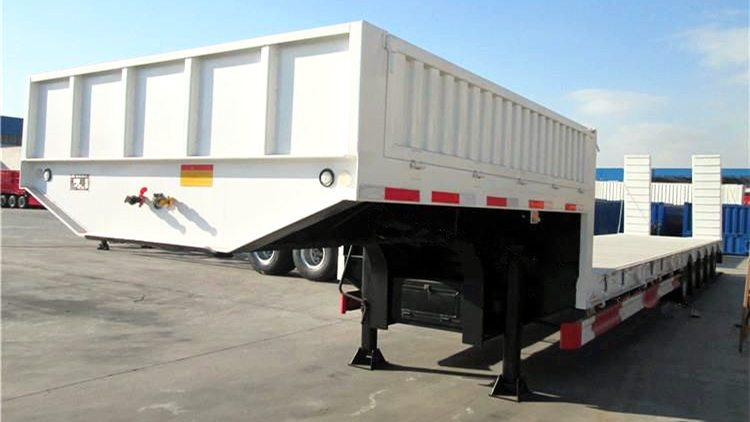

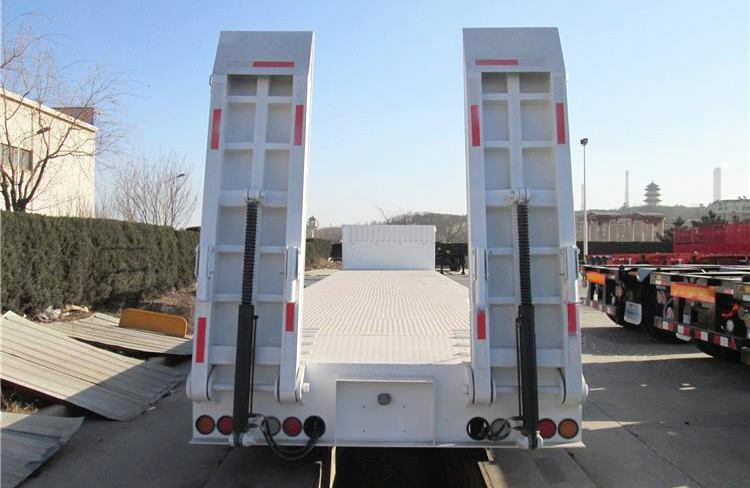

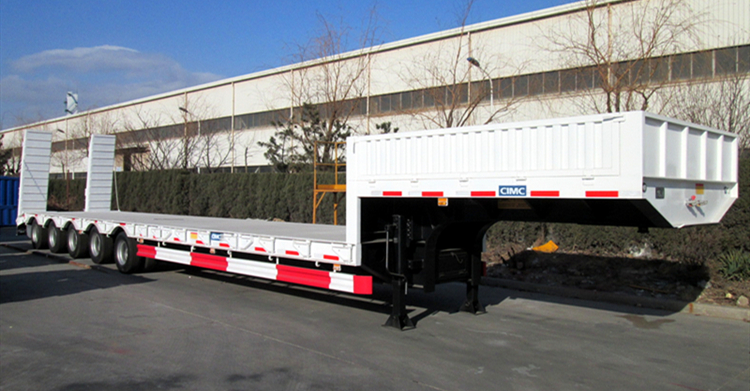

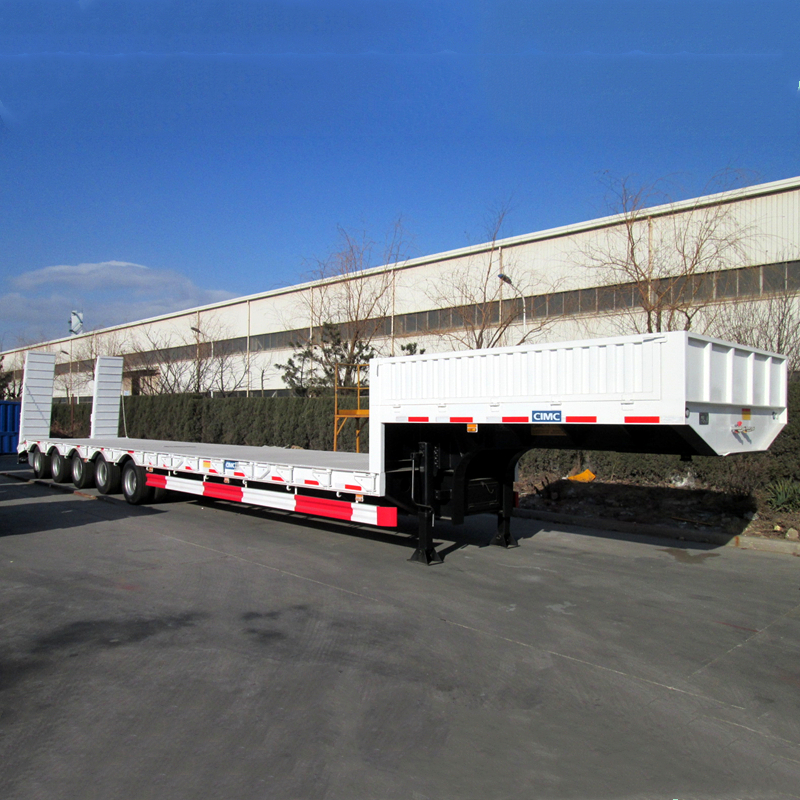

5 Axles Low Bed Loader Trailer

Product Description:

CIMC Lowbed trailer with a low working platform and high payload. It’s widely used to carry construction machinery, tracked vehicles, wheel loaders, vessels, boats, combine harvesters, excavators, rollers and cranes,machine parts or prefabricated sections.

CIMC lowbed semi trailer can be customized according to customer needs.
Different options: 2 axles,3 axles,4 axles,5 axles,6 axles,8 axles,etc. 30T, 40T, 50T, 60T,80T,100T,120T,150T. Hydraulic ladder, Mechanical ladder and Fold ladder so on.

100Ton Low loader trailer

Lowbed truck for sale

Semi low loader trailer

Specification:

Dimension(mm): 15800*3000*3400mm
Loading capacity(T): 100-120T
Axle: 5 axle,13T/16T, FUWA / BPW / CIMC/ Other Brand
Tire: 8.25R20/10.00R20/11.00R20/12.00R20
Suspension: Mechanical suspension or air suspension
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand D200T or Chinese brand 28T(Double speed)
Material: Q345B steel.
Ladder: Manually operated or Hydraulic or Foldtype;Gooseneck: Optional
Brake system: WABCO;ABS: Optional
Light:LED light
Electrical System: 24-volt lighting system
