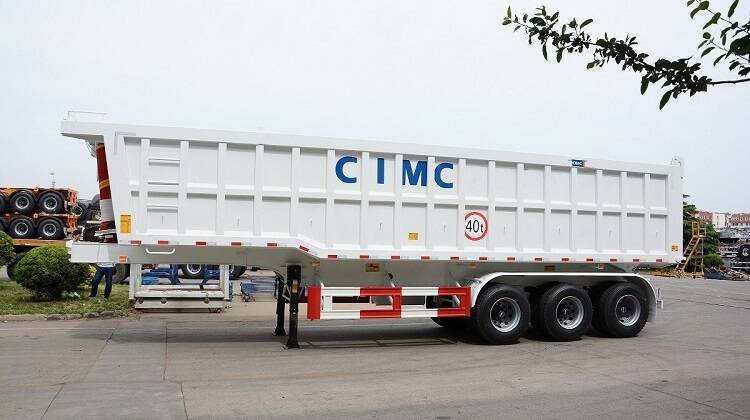

CIMC 40T Semi Trailer Tipper

CIMC 40T Semi trailer tipper description

CIMC 40T Semi trailer tipper adopts high strength steel T700, offering all the durability of high-tensile-strength steel and unique structure design to maximize payload to increase your profitability. So, CIMC designs one of the strongest flatbed trailers on the road today.

CIMC Tippers equipped with reliable hydraulic HYVA cylinder. We can customize the tipper trailers according to your special need, like U shape dump trailer, end dump semi trailer, side tipper, and container tippers.

1. Leaf spring and suspension: The leaf spring is widened and thickened, the shock absorption effect is good, the suspension is widened, and the center pin is wider, which makes the vehicle more stable during driving.

2. Self-weight: We can emphasize the weight of our trailers to our customers, weigh more weight and better carrying capacity;

3 axles hydraulic dump trailer

40t end dump trailer

heavy duty dump trailers

Specification of semi trailer tipper:

Name: 40T Semi trailer tipper

Tare weight: 40T

Bottom plate thickness(mm): 5mm-8mm /Q235 steel or can be optional

Lifting system: Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder

Main Beams: Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel

Axle: 3 axles, 13T/16T, FUWA/BPW/ Brand

Landing Gear: JOST (D200T)or China Brand 28Tons

King Pin: 50#, 90#

Suspension: Mechanical suspension or Air suspension

Customized of hydraulic dump trailer:

For different color

shape U type / Square type / container flatbed dump

capacity 30 ton - 100 ton

Single action or Linkage landing leg

Mechanical suspension or air suspension

any type of container tipper trailer
