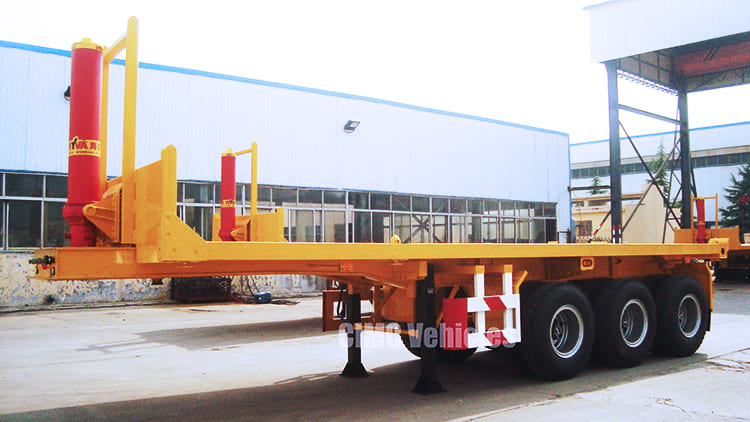

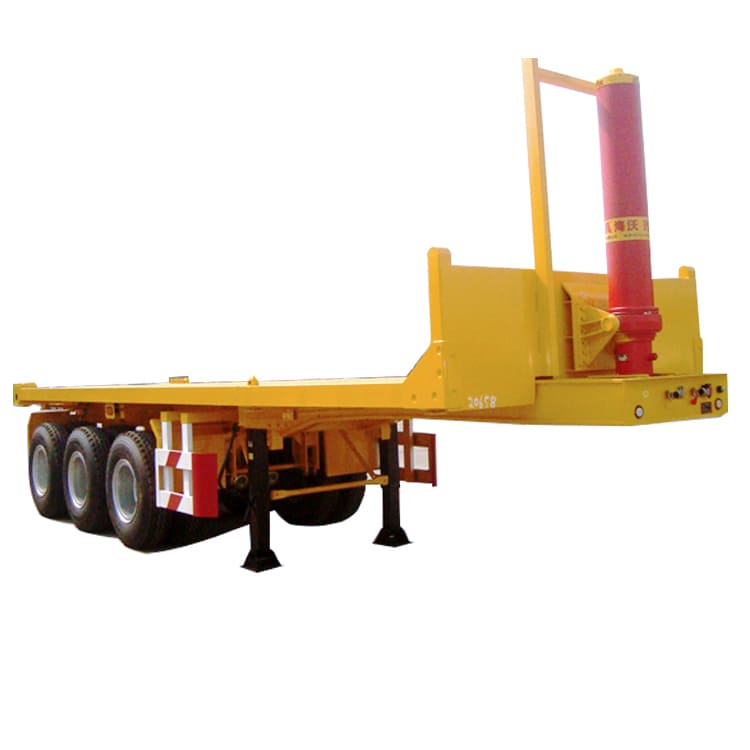

3 Axles 40 Feet Semi Tipper Tipping Flatbed Trailer

3 Axles 40 Feet Semi Tipper Tipping Flatbed Trailer Description:

3 axles 40 feet semi tipper tipping flatbed trailer is used the reinforced suspension on our trailer, 70mm center balance pin, considering the complicated road conditions in Africa.

3 axles 40 feet semi tipper tipping flatbed trailer is equipped with LED lamps and will be shipped with a set of taillights and side lights.

3 Axles 40 Feet Semi Tipper Tipping Flatbed Trailer for Sale with Lower Price in Tanzania

3 Axles 40 Feet Semi Tipper Tipping Flatbed Trailer Specification:

Dimension: 9300mmx2500mm x3700mm

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume: 40 Ton

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

3 Axles 40 Feet Semi Tipper Tipping Flatbed Trailer Advantages:

1. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

2. Double-plate main beam for tipper semi trailer, which has a stronger carrying capacity, it is not easy to damage.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. The leaf spring is widened and thickened, the shock absorption effect is good.

5. Strengthened Ribs, unique structure design to maximize the payload.
