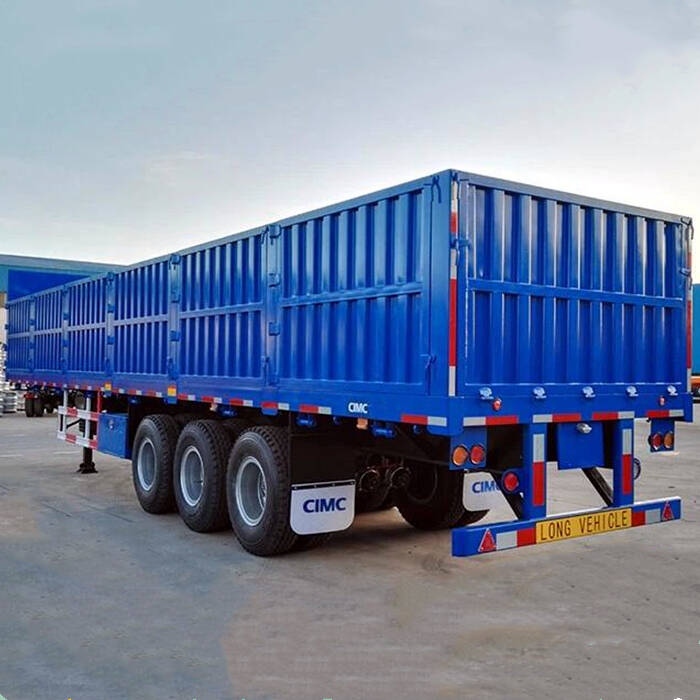

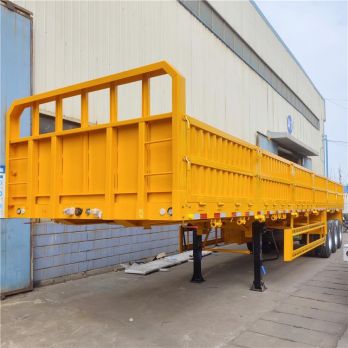

CIMC 3 Axle Drop Side Trailer

Product Description:

Dropside trailer developed on the basis of a container flatbed trailer, the drop side trailer has a side wall structure design.

This sidewall cargo semi trailer is widely used in the logistics. It could be used to carry the bagged grain, cement, steel or other kinds of bulk goods. Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo.

CIMC sidewall semi trailer can be customized according to customer needs.

Different options: 2 axles, 3 axles, 4 axles. 30T, 40T, 50T, 60T. Airbag suspension, spring steel suspension.

Specification:

L*W: 12500mm*2500mm

Sidewall Height: 1000mm

Max. Payload: <60T

Application: Coal/Cargo/Containers Loading

Material: Q345B Steel

Bottom Platform: 3mm-thick checkered plate

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Support leg: JOST brand

Suspension: Airbag / Mechanical / bogie suspension

Axles: FUWA/BPW/CIMC/other

Tires: 12.00R22.5/315 80R22.5(Specially designed and for oversea markets)

Brake System: WABCO

Electrical System: 24-volt lighting system
