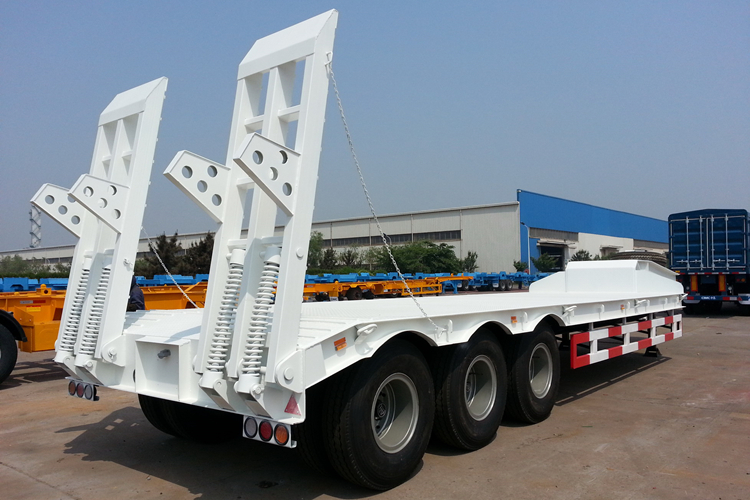

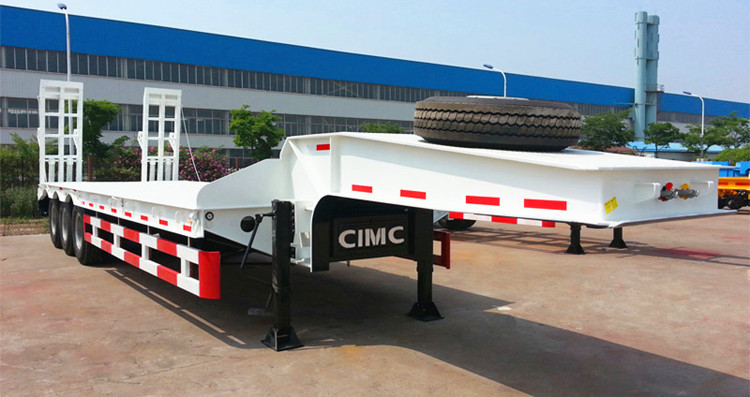

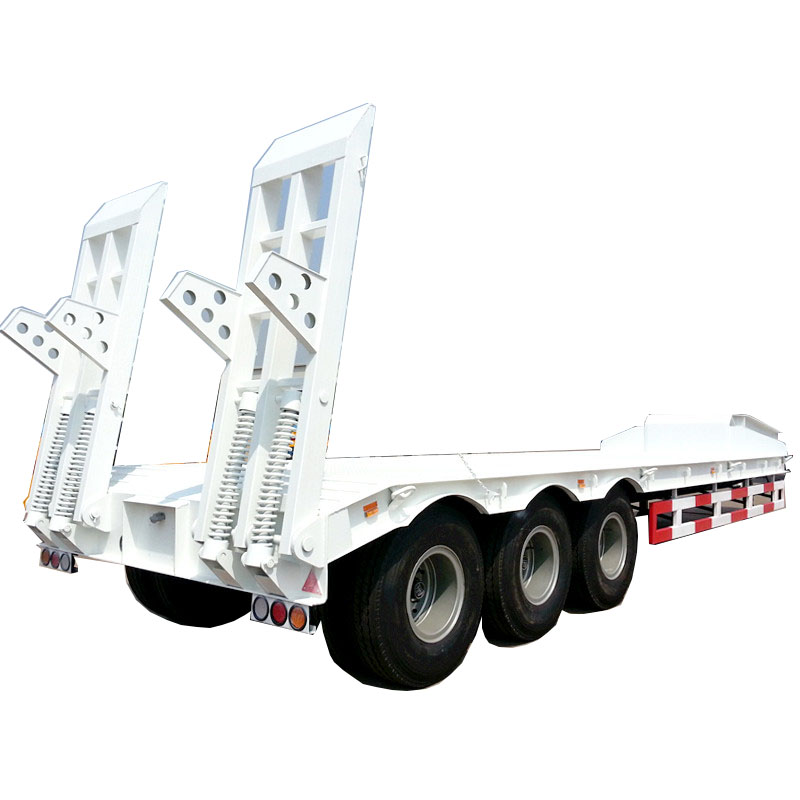

CIMC 3 Axle 40 Feet Low Bed Trailer

Product Description:

CIMC 3 Axle 40 Feet Low Bed Trailers are widely used in heavy machines transportation.

We produce very durable ones with high strength to meet the transport needs. We use high strength steel material to ensure the capacity, the load can be up to 60 to 80 ton payload.

We adopt famous brand parts, like WABCO braking valve, JOST legs, FUWA, BPW axles. These’ll ensure the long service life of the trailers.

Also we can customize the low bed trailer for you.

3 Axle 40 Feet Low Bed Trailer Manufacturers In Dodoma Tanzania

3 Axle 40 Feet Low Bed Trailer Manufacturers In Dodoma Tanzania

Specification:

Loading capacity(T): 60-80Ton

Axle: 3 axle,16T, FUWA / BPW / CIMC/Other Brand

Tire: 8.25R20/10.00R20/11.00R20/12.00R20

Suspension: Mechanical suspension

Kingpin: 50(2inch)#or 90(3.5inch)# bolted type

Landing gear: JOST brand landing gear

Brake system: WABCO brake system

Light:LED light

Electrical System: 24-volt lighting system

Advantages:

1.Main beam adopts HG60 high strength steel, with high loading capacity.

2.Main beam adopts submerged arc welding technology, that ensure the smooth, sturdy welding seams and avoid welding-opening problems. And also improve the loading capacity.

3.Main beam height is 550mm. The front/down plate width is 220mm, and thickness is 20mm. That durable and stronger construction ensure the loading capacity, and also improve its capacity to twisting forces, shock, bump, and meet load requirements on bad road condition.

4.Side beam adopt “H” steel, height is 300mm, width is 140mm, and its thickness is 8mm. The durable design avoid the side beam to have the deformation.
