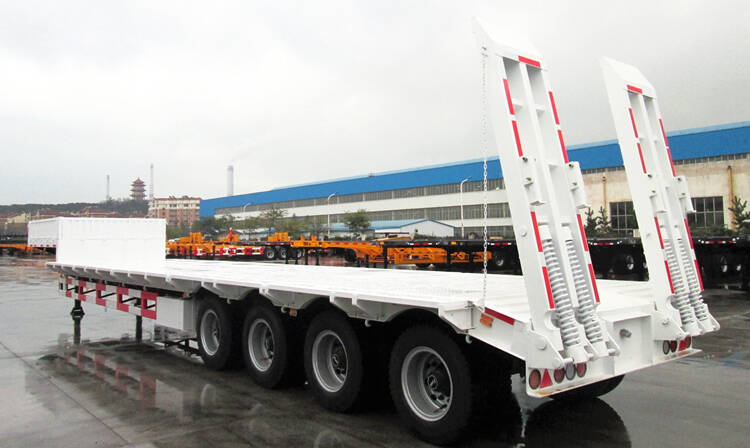

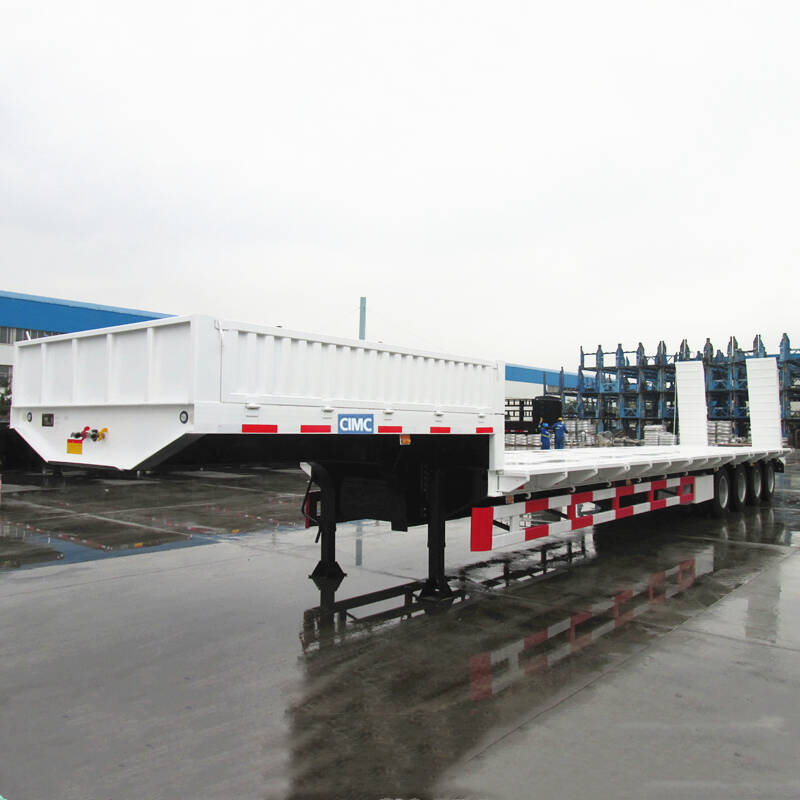

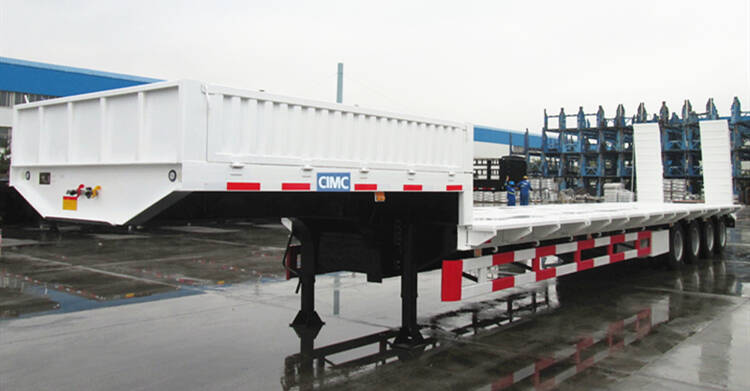

4 Axle 120 Ton Lowbed

120 ton payload lowbed semi trailers 4 axle low bed trailer | CIMC TRAILER

Product Description:

CIMC is a supplier specializing in the production of semi-trailers. It has professional technical team and many years of production experience. Its semi-trailers are well received by a wide range of customers, among which the low bed semi trailer is one of CIMC's specialty products,and it has mature production line.

Low bed semi trailer with a low loading height and high payload. It’s widely used to carry construction machinery, tracked vehicles, wheel loaders, vessels, boats, combine harvesters, machine parts or prefabricated sections.

CIMC Hydraulic low bed semi trailer adopts 550mm main beam, effectively increase the loading capacity by 20%more than ordinary trailer which uses 500mm main beam, ensuring the main beam resistance to twisting forces, shocks and bumps;and to meet load requirements on different kind of roads.The side beam of Titan lowbed trailer adopts 300mm "I beam" design, and its loading capacity is 5 times higher than the ordinary one which uses 250mm side beam.

Details of Hydraulic low bed trailer:

Specification:

Dimension(mm): 15800*3000*3400mm

Loading capacity(T): 80-100T

Axle: 4 axle,13T/16T, FUWA / BPW / CIMC/ Other Brand

Tire: 8.25R20/10.00R20/11.00R20/12.00R20

Suspension: Mechanical suspension or air suspension

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand D200T or Chinese brand 28T(Double speed)

Material: Q345B steel.

Ladder: Manually operated or Hydraulic or Foldtype;Gooseneck: Optional

Brake system: WABCO;ABS: Optional

Light:LED light

Electrical System: 24-volt lighting system
