The main assembly of the powder tank truck is composed of a tank body, a power system (diesel engine, air compressor), a gas circuit system, and a brake system.

At present, the design of the fluidized bed in the tanks of general large manufacturers is scientific and the layout is reasonable, which can effectively shorten the discharge time and reach 1.4T / min.

The volume utilization rate of the tank is improved, and the residual ash rate is reduced, and the residual ash rate is 0.2%.

Piping system:

Intake pipe: After the gas is output by the air compressor, it enters each cabin through the check valve and the ball valve. A safety valve is installed before and after the check valve to prevent the pipeline pressure from being too high to damage the air compressor in case of an accident. The safety valve is set to bleed pressure to 0.2Mpa.

A pressure relief valve is installed on the top of the tank body to release the residual pressure in the tank, and is used for deflation before the user opens the material cover and stops discharging in the middle.

Unloading pipeline:

The discharge pipeline is mainly composed of suction port, butterfly valve, discharge steel pipe, discharge pipe joint, discharge hose, etc.

An anti-shock pressure gauge is installed on the tank body to monitor the pressure change in the tank and to guide the discharge.

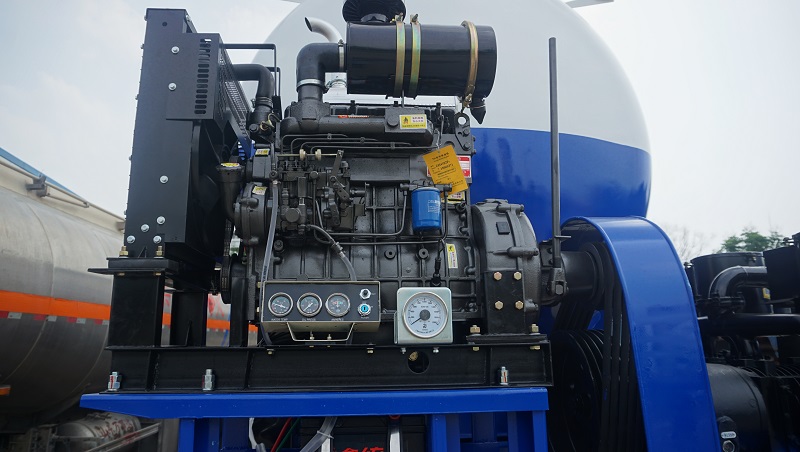

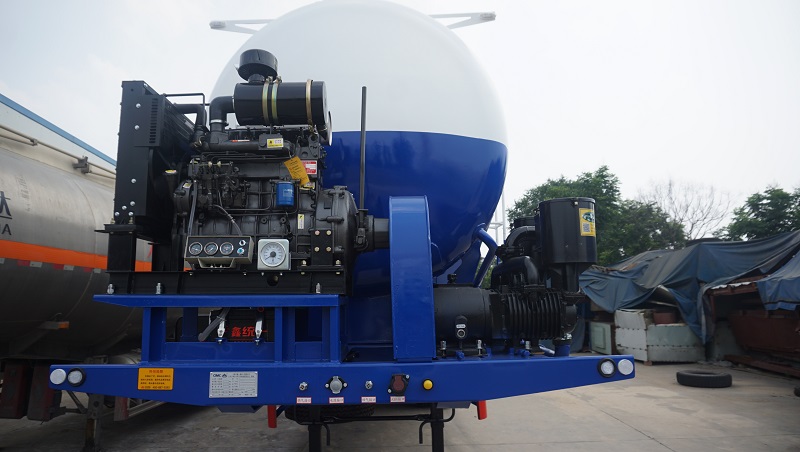

Power system:

Single-cylinder or double cylinder air compressor is used to provide compressed air for discharge work, the pneumatic sand trailer rated working pressure is 0.2Mpa; the displacement is 10-14 cubic meters/min.

Diesel engine and motor wave can be used to connect and drive through the secondary force device The shaft provides power input for the air compressor.

Tank body:

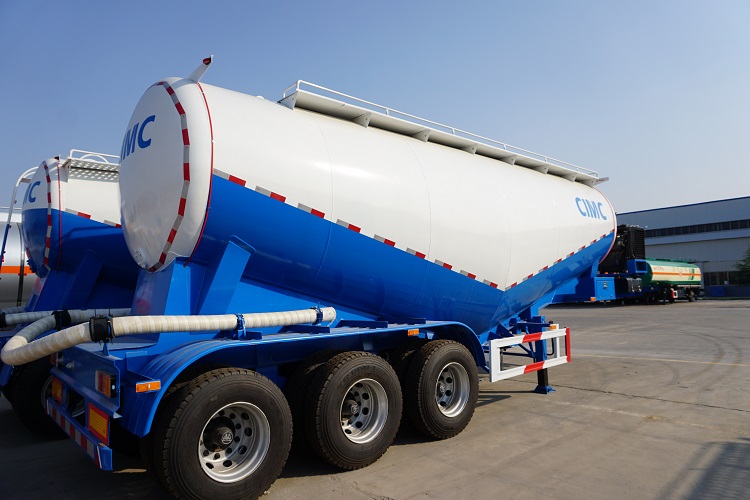

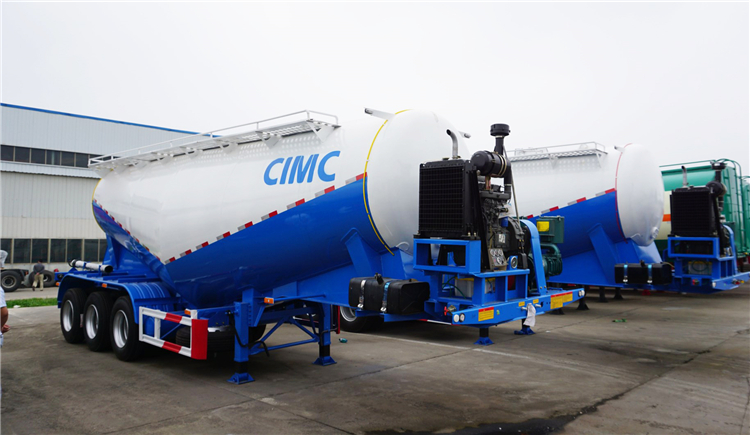

The powder tanker body is mainly composed of two oblique cones and front and rear heads. It is placed on the frame and serves as a carrier. The tank body is equipped with a feed inlet, a non-slip walking platform and a ladder for loading and maintenance personnel to enter the tank. The tank has slides, air chambers, discharge ports, etc., and the tank structure is V-shaped cement bulker, W-shaped silo semi trailer or straight shape cement tanker.

The V shape powder tanker trailer is a single silo tank, generally suitable for designing cubic numbers of 15-45m³. The W shape is a double-storage tank, generally suitable for designing cubic numbers of 50-75m³.

Different brands and matching of diesel and air compressor units will also affect the loading and unloading speed. High-quality diesel engines and air compressor devices are not only expensive issues. They are mainly used for occasions with few problems, fast speed and saving unloading time.
