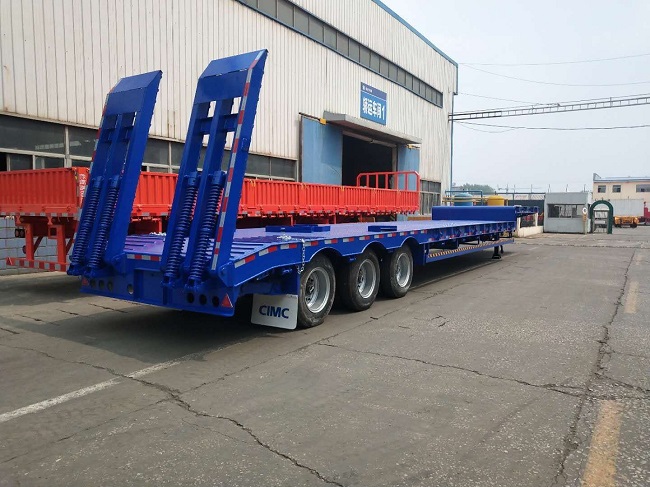

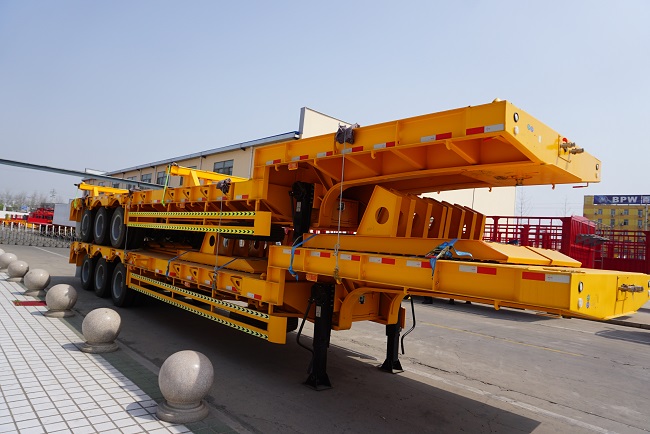

Yesterday，cimc lowbed semi trailer has been finished，it will be send to our Nigeria customer.

For this lowbed trailer, we also can provide optional solution as your transport requirements.

We have 2 axles,4 axles and more axles for option . And different platform size for option.

we adopt Polyurethane paint for our trailer, It’s more bright and firm. The cost of this paint is twice than the normal, but we can guarantee that our paint won't fade in five years.

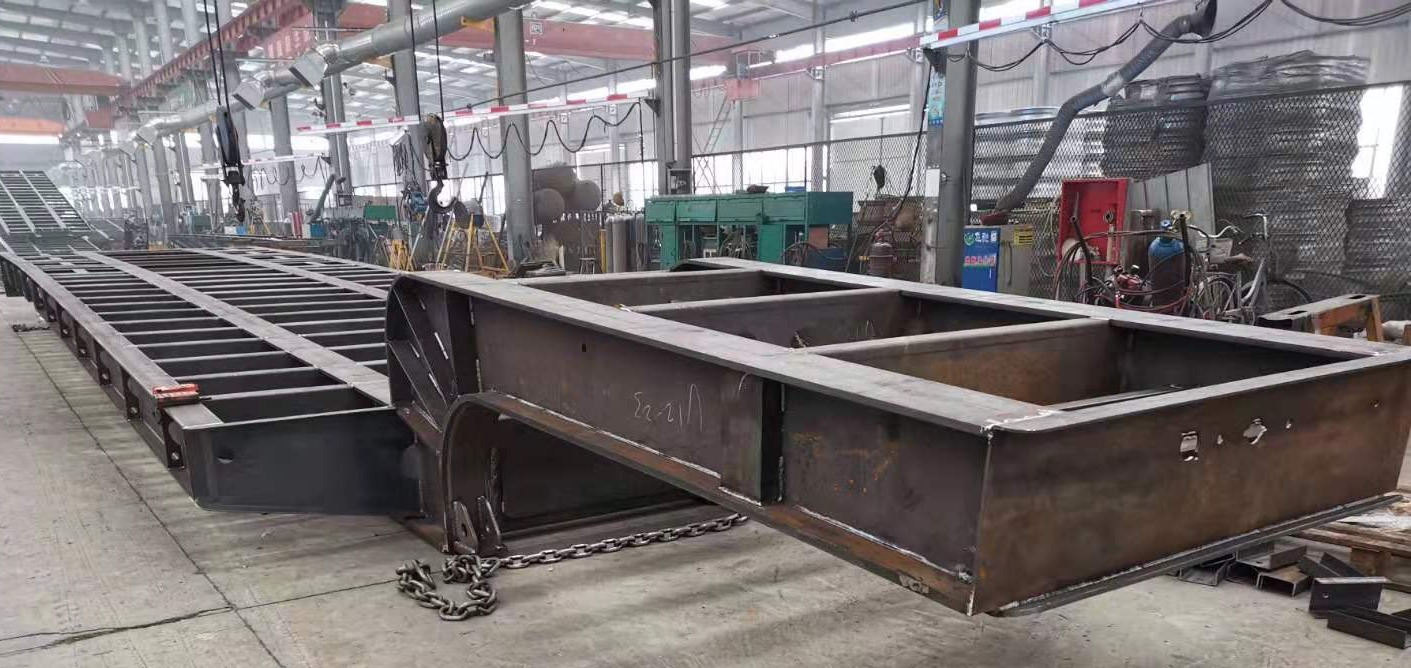

The main beam of Titan is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times of that of Q345 steel trailer.

cimc in the process of transporting goods, the girder does not bend.

The side beam is designed with "H" shape and welded with Hg 60 steel. Its bearing capacity is twice that of other steel and it will not deform in ten years. Anti turbulence ability increased by 3 times.

CIMC hydraulic system has undergone five major system upgrades in the ten-year production process, and now the hydraulic system has a very good stability and stability.

Low bed trailer Transport heavy machinery working platform height as low as possible

The drop deck main beam can be designed to be high-low-high, and the height of the working platform can be reduced to 65 cm.

Select air suspension, the lowest position is 22cm from the ground.

Use spring suspension, the lowest position is 14cm from the ground.

The low loader working platform height of the rear three axles is 88cm.

The height of heavy duty trailer work platform is determined by the size of the tires and the leaf springs.For example: 12R22.5 tires are installed, the leaf spring is reverse mounted, and the working platform height is 1.2m.

Under the premise of this configuration, reduce the height of the working platform.That only shortens the height of the main beam.

So, Truck friends when customizing new low flatbed trailers, do not blindly reduce the height of the working platform. The shortening and narrowing of the main beam will directly affect the load capacity and service life of the heavy load trailers.

Do you want to customize a good low deck trailer? welcome to send online message and inquiries
