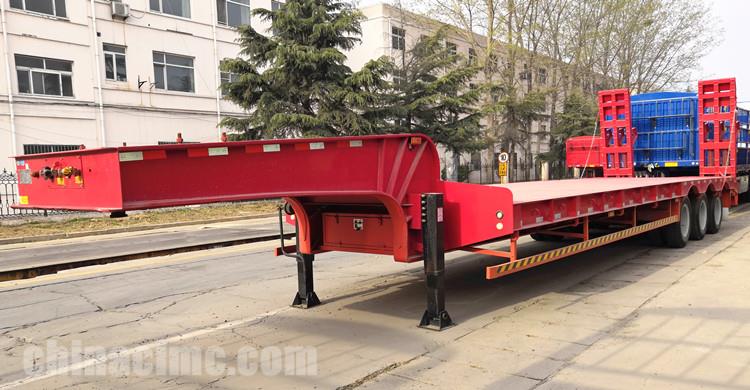

CIMC Tri Axle Semi Low Bed Trailer for Sale in Guyana

Guyana customer loves CIMC brand because he already has a CIMC semi trailer and has been using it for many years. This time, it is because the appearance of the low bed trailer is too old. Although it does not affect the use, the customer still wants to buy another CIMC tri axle low bed trailer.

Our sales manager Jacky was very active in helping the customer to confirm the details. And make drawings and customer confirmation. As the largest semi-trailer supplier in China, the quality of CIMC low bed trailer is more guaranteed.

Because the tri axle low bed trailer for sale is most often produced and exported, we quickly finished the production of the low bed trailer transport and handed over the work. The next step is to send the low bed trailer to the customer's place as soon as possible.

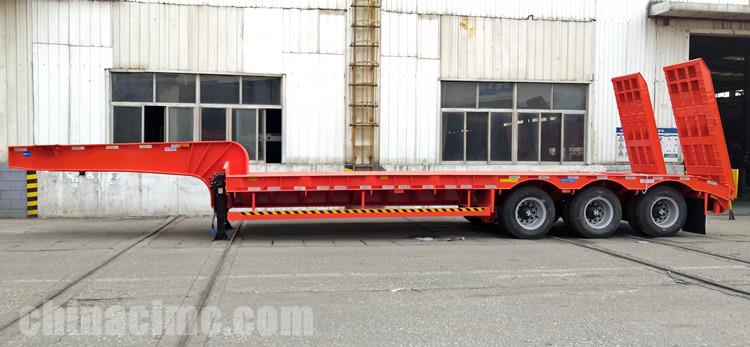

CIMC Tri Axle Semi Low Bed Trailer for Sale in Guyana

Low bed trailer for sale in Guyana is usually used to transport a variety of machinery and equipment, heavy equipment, highway construction equipment, large tank body, power station equipment, and various excavators, and are used to transport heavy vehicles (such as tractors, coaches, subway truck head, etc.), rail vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, pavers, cranes, etc.) and other heavy-duty cargo.

The lower the platform height of the low bed trailers, the better the stability and safety. Our tri axle low bed trailer for sale has a large carrying capacity when transporting extra high and medium cargo. CIMC semi low bed trailer height from ground is usually 1300mm. If you have special needs, we can also customize it for you.

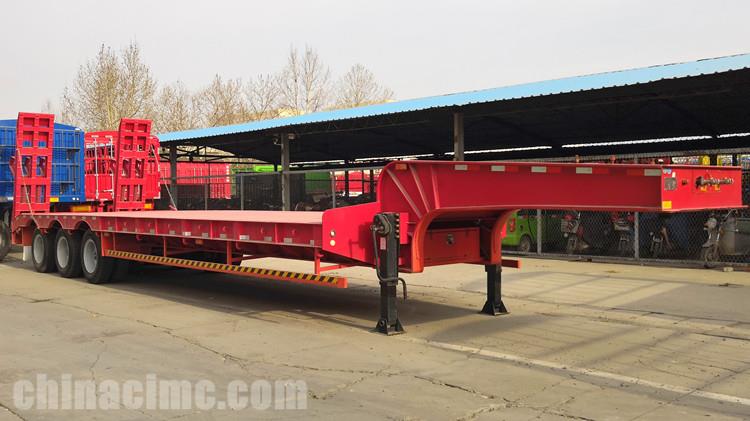

CIMC Tri Axle Semi Low Bed Trailer for Sale in Guyana

Components of the semi low bed trailer:

1. Suspension system: transfer load and absorb vibration.

2. Axle and hub system: A single, two and three axle assemblies of the same structure are installed under the suspension system.

3. Landing gear lifting system: In order to make the CIMC low bed trailer reliably parked after being separated from the truck, the front end of the frame is provided with two linkage or single action landing gear. It consists of a screw drive mechanism, a bevel gear drive mechanism, a two-speed reduction gearbox, a transmission rod, an operating handle, and so on.

When the handle is pushed in, the rotation can be raised and lowered at high speed, and when the handle is pulled out, the rotation can be raised and lowered at low speed. When the outriggers touch the ground, they can only be raised and lowered in low gear.

CIMC Tri Axle Semi Low Bed Trailer for Sale in Guyana

4. Traction pin: There is a traction pin connection plate connected to the tractor saddle at the lower part of the front end of the frame. The traction pin is mainly used to transmit the traction of the tractor and the braking force during braking.

5. Semi trailer braking system: It is composed of the trachea connector, inflation pipe, operating channel, gas reservoir, brake air chamber, relay valve, ABS valve, ABS sensor and wheel brake of the tractor.

The inflatable tube is connected to the tractor’s gas tank through a quick pipe joint; it is connected to the tractor’s brake valve through a quick joint. When the CIMC low bed trailer brakes, each brake air chamber functions simultaneously.

6. Semi trailer airway: Three major parts: emergency relay valve, ABS valve, brake air chamber, most of the faults come from these three pieces.

 7. Semi trailer circuit: The semi low bed trailer transmits the light signal of the main vehicle to the trailer by connecting the spiral cable plug of the truck to the circuit socket at the front of the trailer. Thus, the vehicle equip with an international general electrical system that matches the truck. The electrical system generally consists of seven core sockets, multi core cables, junction boxes, waterproof connectors, and various types of lamps and other components.
