CIMC Tri Axle 40ft Container Chassis for Sale in Rwanda

Thank you to our customer in Rwanda for choosing us. From our website, he found out that we are the manufacturer of CIMC semi trailers. He works in the container shipping industry. CIMC container chassis trailers are perfect for shipping containers. He mainly transports 40ft container, sometimes 20ft container.

Sales manager Lillian recommends customers to use tri axle 40ft container chassis, which can transport 20/40ft container. CIMC container chassis trailer can be customized to 20/40/45/53 feet. We also provide customers with different options: 2 axles, 3 axles, 4 axles, airbag suspension, spring steel suspension. Special models container chassis trailer: terminal trailer, tipper chassis trailer and interlink trailer. The final customer chose CIMC among 5 suppliers. The following is the CIMC 40ft container chassis that will be shipped soon.

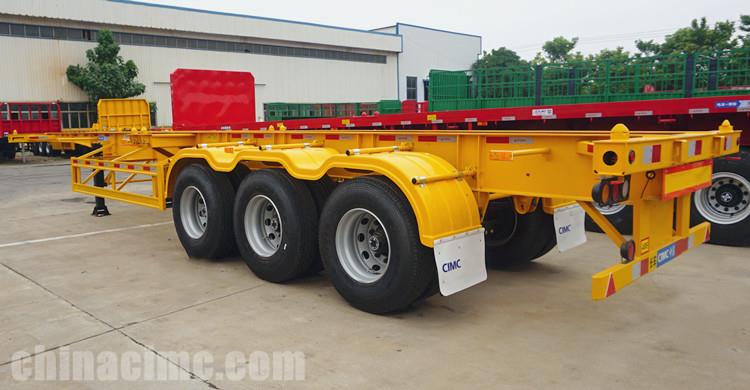

CIMC Tri Axle 40ft Container Chassis for Sale in Rwanda

Points to note when buying a container chassis

1. Frame of container transport trailer

The Frame is the main load bearing part, which is composed of a beam, a side beam, a beam, a floor, and a suspension.

CIMC main beam made of Q345 high strength steel has the higher bearing capacity and service life of more than 10 years, CIMC 40ft container chassis uses automatic arc-submerging welding method to weld the main beam, there isn’t interface between the steel plate，it can ensure the integrated main beam, so the main beam is stronger and more durable.

The thickness of the beam part depends on whether the thickness is an international standard. The international standard for the frame of the skeleton car is 14/8/16 mm. The material of the steel plate in the middle of the beam is Q345B or manganese steel with a thickness of 8mm. Many unreliable suppliers will use 6mm Thickness beam slabs to save costs, but the carrying capacity was reduced by 26%. The international standard thickness of the middle part of the beam must be 8mm.

Locks, CIMC container chassis for sale is equipped with 12 sets of locks, which can be used to transport a 40 foot container or two 20 foot containers, or a 20 foot container alone.

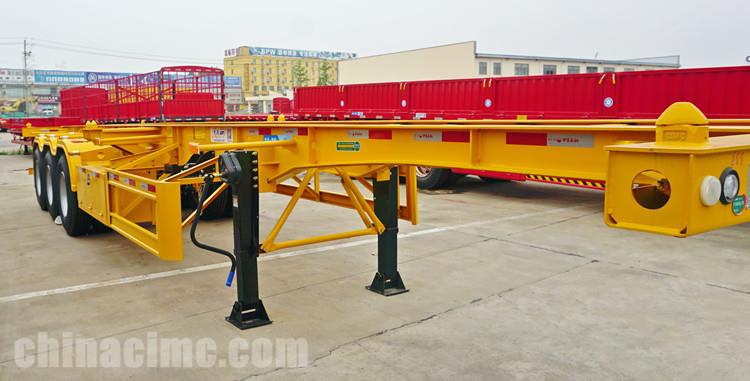

Details of CIMC Tri Axle 40ft Container Chassis for Sale

2. Braking system

Braking system, effective braking, fast braking response, braking distance reduced by more than 5m The brake system of Wabco can also be selected.

3.Suspension of tri axle chassis

The suspension of the CIMC container chassis is made of special high-strength rigid steel, 70mm center balance pin, Other factories use light suspension, the pin is only 45mm, the service life is short, it will cause abnormal wear.

The suspension is reinforced at the front and rear, left and right. The separate road conditions for Africa are to meet the requirements of dirt road surface and poor road conditions.

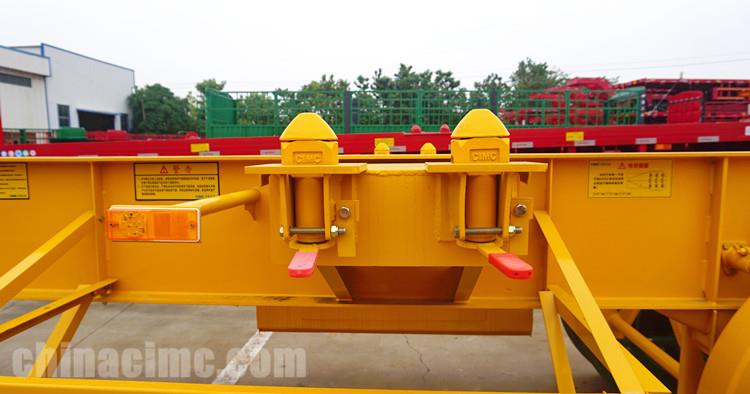

Container Lock of CIMC Tri Axle 40ft Container Chassis

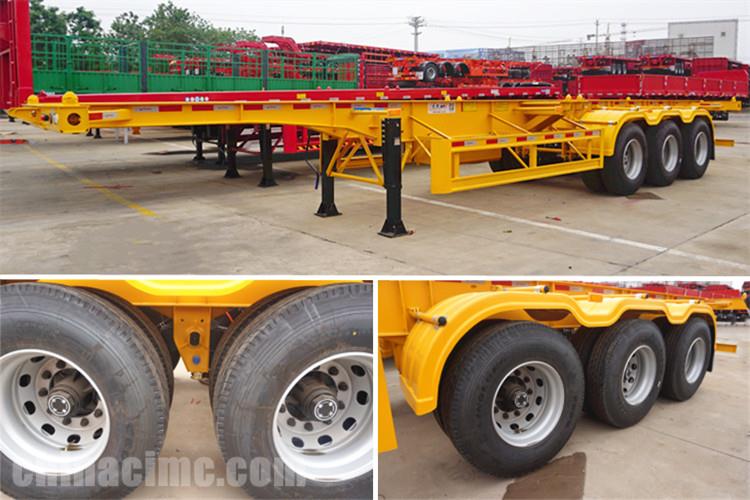

4. Axles and tires of the container chassis trailer

Axle

The axles of the CIMC tri axle chassis trailers are divided into three types: 13 ton axles, 13 ton axles + 16 ton brake system axles, 16 ton axles.

Tire

The container chassis uses a vacuum tire with better heat dissipation performance, the model is 12R22.5.

5. Design

Due to its application and use, container chassis trailers are made of high-strength materials. It is a rugged structure designed to provide you with the services you need without having to do a lot of manufacturing work through high-quality welding techniques that have been tried and tested to ensure that the skeletal trailer meets high quality standards.

CIMC shipping container trailer uses polyurethane paint, high adhesion, high chroma, beautiful color.
