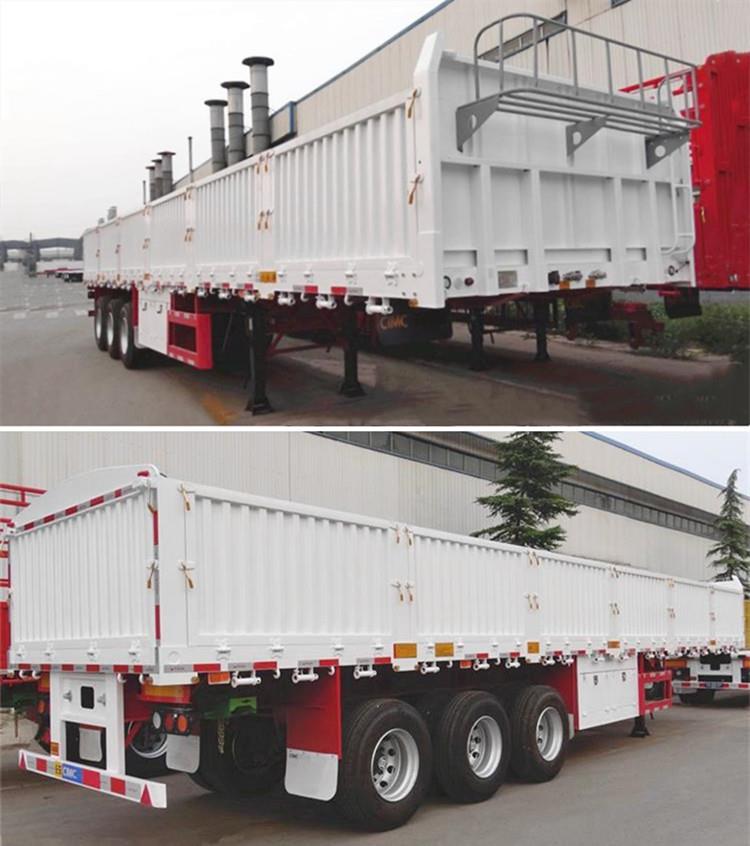

CIMC 60 Ton Drop Side Trailer for Sale in Malawi

Malawi customer customized 2 sets drop side trailer. The Malawi customer saw a trailer with the CIMC logo in the local area. Find us by searching. And leave an inquiry on the website. Our sales manager Jacky immediately contacted the customer to inquire about the demand.

The customer mainly transports some bulk goods. After 1 month of confirmation negotiations. The final customer bought 2 sets of 60 ton drop side trailer. We will take pictures to the customer at any time during the production process and when it is completed, to inform the customer of the production progress. At present, the drop side trailer has been produced and ready to be sent to Malawi.

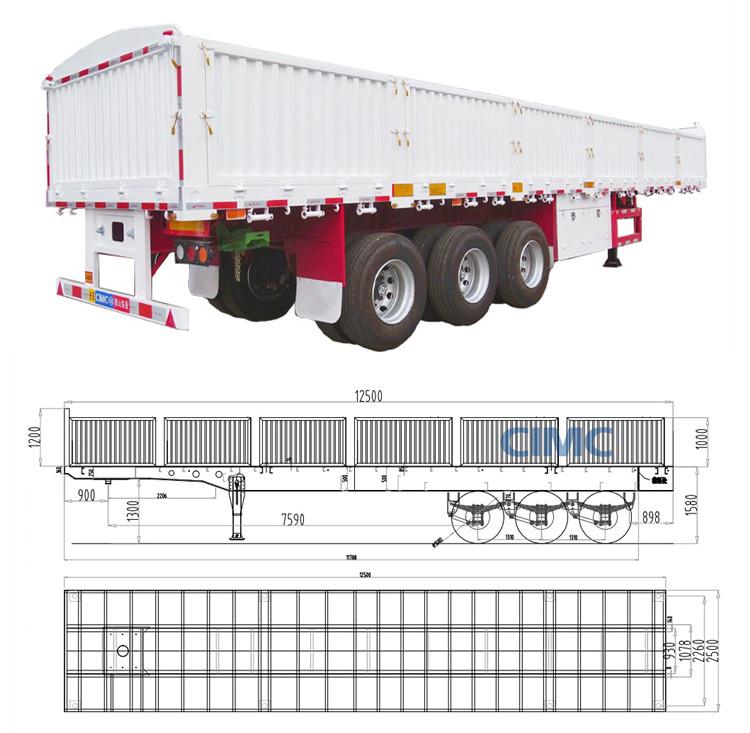

Details of CIMC 60 Ton Drop Side Trailer for Sale

What are the components of CIMC drop side trailer?

1. Frame of drop side trailer. Frame is the main and important part of load-bearing. It is composed of main beams, side beams, cross beams and tilted supports.

2. High side board. The side board is divided into a flat plate and a vertical corrugated board. Can be detached or welded to death.

3. Protection device. Protection rotect pedestrians and other trailers from getting under the CIMC drop side trailer. It can also reduce wind resistance and save fuel.

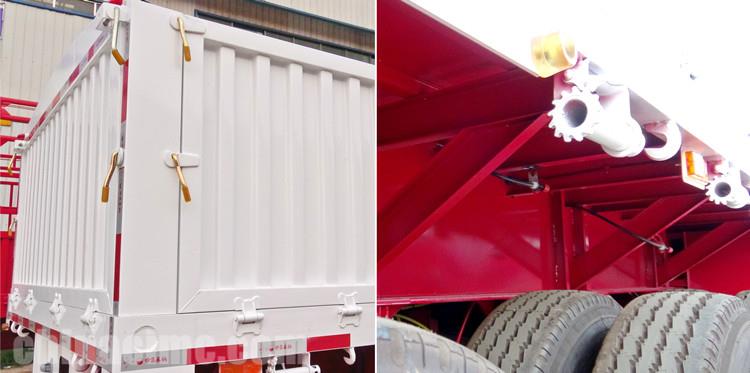

Details of CIMC 60 Ton Drop Side Trailer for Sale

4. Traction king pin of drop side trailer. The traction pin is an important component that connects the drop side trailer for sale to the tractor and withstands traction, and is connected to the traction seat.

5. Support leg. In order to make the CIMC drop side trailer reliably parked after leaving the truck head, the front end of the frame is equipped with two support legs that are linked left and right or left and right.

6. Axles and tires. Drop side trailer three axle assemblies of the same structure are installed under the suspension system.

7. Suspension system. The suspension system is a three-axis leaf spring suspension suspension, which is used to support the load and has the function of absorbing driving vibration and so on.

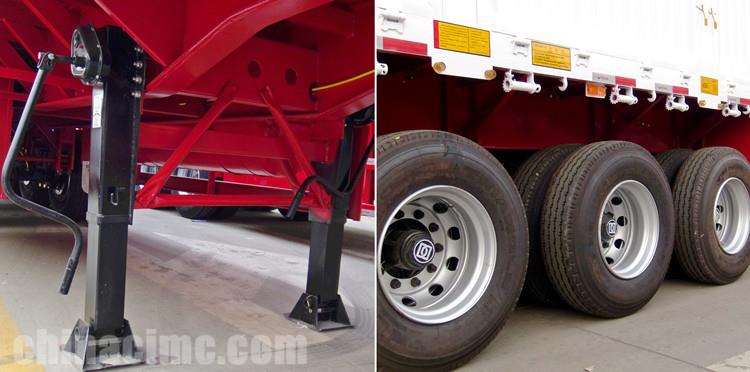

Support leg and Axles of CIMC 60 Ton Drop Side Trailer

8. Brake and operating device. The 60 ton drop side trailer uses a dual-line pneumatic braking system and is equipped with an anti-lock braking system (ABS).

9. Electrical system. The drop side trailer for sale is equipped with an international electrical system that is compatible with the tractor.

10. Trailer attachment. Other accessories on the drop side trailer include tool box, spare tire frame, stakes and so on. There are also some small accessories, such as tight-fitting ropes and rope hooks.
