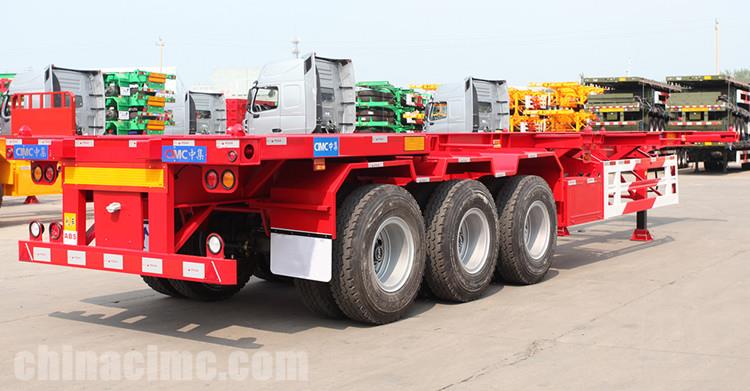

CIMC 40 ft Intermodal Container Chassis Trailer for Sale in Malta

This time, a Malta customer found our company through an internet search. After browsing our official website, Malta customer think that CIMC is a supplier specializing in the production of semi-trailers. So leave an inquiry on our official website.

Malta customer contacted our sales manager and asked for a quotation. According to the road condition and cargo or container they need to deliver, they discussed the details for over a week to determine the intermodal trailer dimensions, and finally choose the 3 axle 40 ft container chassis, which can completely meet his needs and also save cost.

When we finished designing, assembling, testing and waxing, an economical and new 3 axle 40 ft container chassis for sale is born and ready to be shipped.

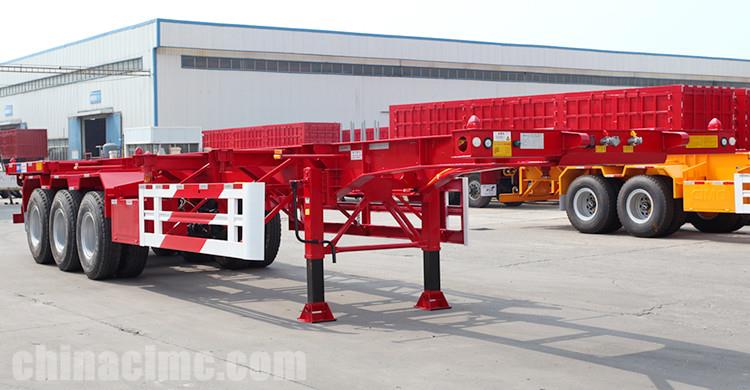

CIMC 40 ft Intermodal Container Chassis Trailer for Sale in Malta

Points to note when buying a intermodal container chassis:

1. Frame of container chassis trailer

The Frame is the main load bearing part, which is composed of a beam, a side beam, a beam, a floor, and a suspension.

CIMC main beam made of Q345 high strength steel has the higher bearing capacity and service life of more than 10 years, CIMC 40 ft container chassis for sale uses automatic arc-submerging welding method to weld the main beam, there isn’t interface between the steel plate，it can ensure the integrated main beam, so the main beam is stronger and more durable.

The thickness of the beam part depends on whether the thickness is an international standard. The international standard for the frame of the skeleton car is 14/8/16 mm. The material of the steel plate in the middle of the beam is Q345B or manganese steel with a thickness of 8mm. Many unreliable suppliers will use 6mm Thickness beam slabs to save costs, but the carrying capacity was reduced by 26%. The international standard thickness of the middle part of the beam must be 8mm.

Locks, CIMC 40 ft container chassis for sale is equipped with 12 sets of locks, which can be used to transport a 40 foot container or two 20 foot containers, or a 20 foot container alone.

2. Braking system

Braking system, effective braking, fast braking response, braking distance reduced by more than 5m The brake system of Wabco can also be selected.

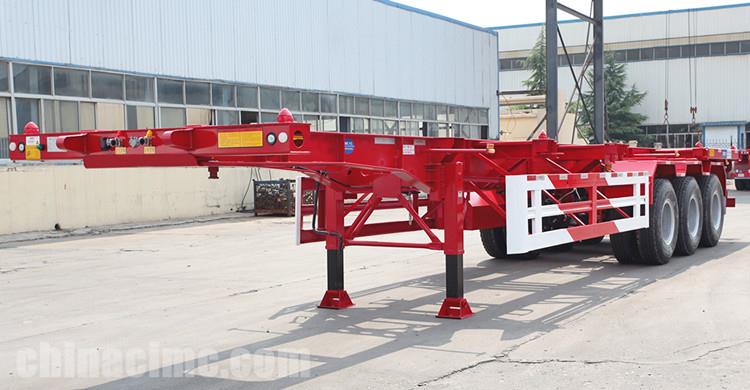

CIMC 40 ft Intermodal Container Chassis Trailer for Sale in Malta

3. Suspension of intermodal trailer

The suspension of the CIMC 40 ft chassis for sale is made of special high-strength rigid steel, 70mm center balance pin, Other factories use light suspension, the pin is only 45mm, the service life is short, it will cause abnormal wear.

The suspension is reinforced at the front and rear, left and right. The separate road conditions for Africa are to meet the requirements of dirt road surface and poor road conditions.

4. Axles and tires of the container chassis trailer

Axle

The axles of the CIMC intermodal chassis for sale are divided into three types: 13 ton axles, 13 ton axles + 16 ton brake system axles, 16 ton axles.

Tire

The intermodal trailer uses a vacuum tire with better heat dissipation performance, the model is 12R22.5.

5. Design

Due to its application and use, intermodal trailers are made of high-strength materials. It is a rugged structure designed to provide you with the services you need without having to do a lot of manufacturing work through high-quality welding techniques that have been tried and tested to ensure that the intermodal container chassis meets high quality standards.

CIMC container chassis trailer uses polyurethane paint, high adhesion, high chroma, beautiful color.
