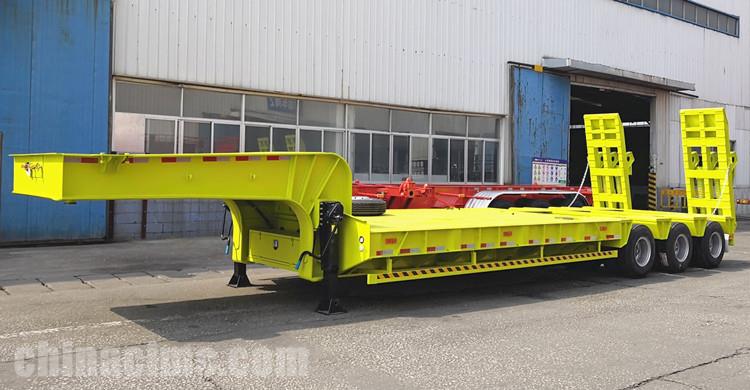

CIMC 3 Line 6 Axle 100 Ton Low Bed Trailer for Sale in Burkina Faso

The 3 line 6 axle 100 ton low bed trailer was made for our Burkina Faso customer. When customer through our website link to us, tell us that he want a to pull machine’s low bed trailer, then through the communication with our sales manager, finally we recommend the 3 line 6 axle 100 ton low bed trailer.

This Burkina Faso customer is very satisfied, and established long-term cooperation relations with us, And promised to introduce a lot of customers to us, the whole cooperation process is very pleasant.

CIMC 3 Line 6 Axle 100 Ton Low Bed Trailer for Sale in Burkina Faso

Advantage of CIMC low bed trailer

1. Frame of low bed trailer

Main Beam: The main beam of CIMC low bed trailer is made of Q460C high strength structural steel. Q460C steel has a yield strength of ≥620Mpa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times that of the trailer made of Q345 steel.

CIMC low bed trailer main baem adopts a height of 500mm and a thickness of 14mm. The thickness of upper plate is 22mm, the thickness of lower plate is 22mm and the width of upper and lower plate is 220mm.

Other factories use Q345 steel main beam for the low bed trailer. The width of the upper and lower plates is 140mm. The load-bearing capacity of the frame is 27% lower than that of CIMC low bed trailer.

CIMC 3 Line 6 Axle 100 Ton Low Bed Trailer for Sale in Burkina Faso

Side Beam: The side beam adopts "H" shape design and is welded with T700 high strength steel and it is designed H shape with a height of 300mm, width of 140mm and thickness of 8mm. Its bearing capacity is twice that of other steel, and CIMC low bed trailer will not deform after ten years of use. Anti - turbulence ability increased about 3 times.

Side support: The beam design, our side support beam use Q460C high strength structural steel. The thickness is 6mm, and the inclined support is Q460C with a thickness of 6mm. Effectively connect the main beam and side beam together as a whole. Bearing capacity anti - turbulence capacity greatly increased, the service life more than 10 years.

All trapezoidal scales for the whole vehicle, G-type scales (higher strength than ordinary C-type scales) are used for the vehicle weighing less than 60 tons.

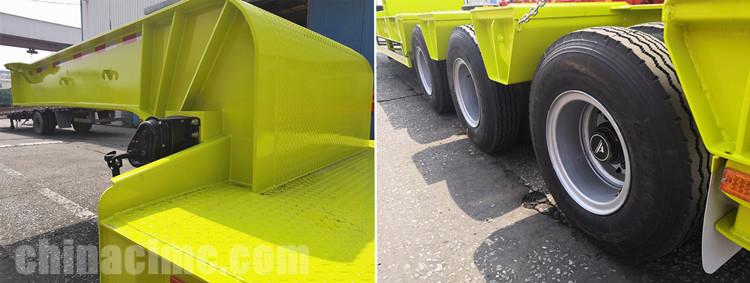

2. Gooseneck of low bed trailer

CIMC low bed trailer main beam gooseneck lower has a reinforcement, gooseneck double plat. The low bed trailer in the heavy load when the deformation range is very small, better to use.

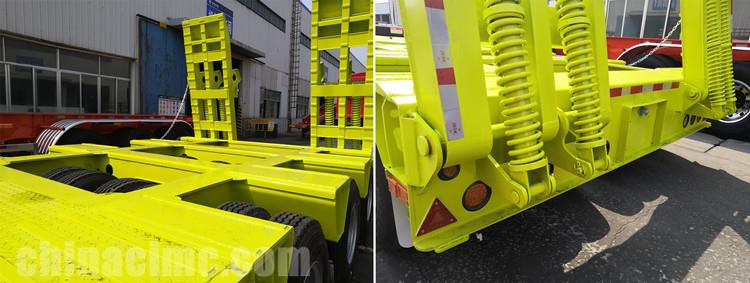

3. Ramp of low bed trailer

The ramp of low bed trailer is welded with H60 steel of high strength steel plate, which has strong bearing capacity and effectively ensures that the weight of excavator or other heavy equipment can pass through the spring ramp without deformation or damage.

The low bed trailer for sale ramp adopts four-in-one high-strength board, which has high strength, durability and no deformation. Using high elastic double spring climbing ramp, ordinary people can easily lift with one hand, which is more convenient to operate.

The service can up to more than 5 years, other factories use channel steel welding, it is easy to deformation collapse.
