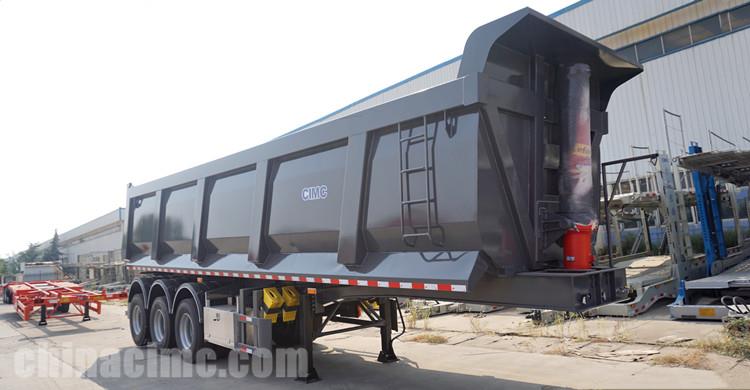

3 Axle U Shape 33CBM End Dump Trailer for Sale in Mali

This Mali customer is our regular customer, every year will purchase semi-trailers from CIMC, this time need to buy two units of 3 axle dump trailer, the customer based on trust in us, not too much communication, just simple communication specifications and prices, and then placed a deposit.

Because the customer is a regular customer, we also gave the user a lot of upgraded configurations, and send a lot of accessories, so as to ensure that the end dump trailer have a longer life and longer use.

The current 33cbm dump trailer have upgraded to the latest paint technology: electrophoretic primer + powder spraying. The process is based on electrophoresis, through corona discharge, the topcoat powder is uniformly attached to the car body and then melted at high temperature to form the topcoat.

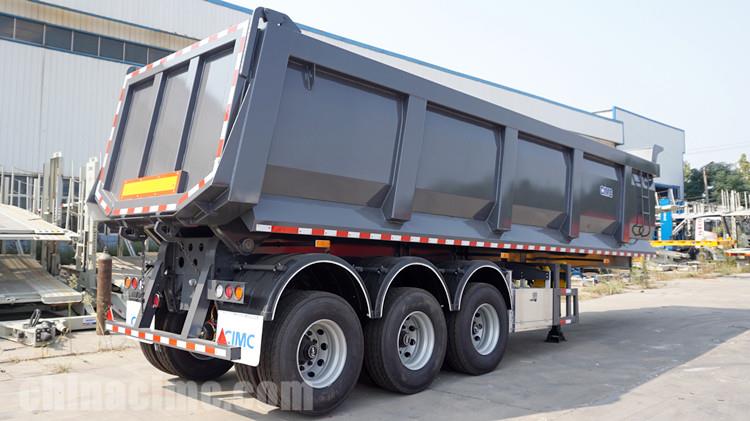

3 Axle U Shape 33CBM End Dump Trailer for Sale in Mali

End dump trailer is a large trailer, 3 axle dump trailer will help you to carry and unload bulk cargo in a very simple and efficient way. In the end, your operation will be very affordable. Especially when dealing with large jobs. With dump trailers, they are suitable for construction, agriculture and recycling industries and many others. They come in different shapes and types. Therefore, you will have a variety of options based on your specific needs and requirements.

End dumps trailer are more common. Push the piston rod to tilt the box. A few two-way tips. The high-pressure oil enters the lifting hydraulic cylinder through the distribution valve and hydraulic hose. And there is a safety protection plate at the front end of the cabin.

The hydraulic tilting system is composed of oil tank, hydraulic pump, distribution valve, lifting hydraulic cylinder, controlling valve and hydraulic hoses. The engine drives the hydraulic pump through the transmission and the power take-off device. By controlling the movement of the piston rod through the controlling system, the tipping box can be stopped at any position. The tipping box uses its own gravity and hydraulic to return back.

Details of 3 Axle U Shape 33CBM End Dump Trailer for Sale

Advantages of end dump trailer:

1. Double-plate main beam for 3 axle dump trailer, for heavy-duty dump trailer for sale, the main beam is designed with double plates, which have stronger carrying capacity, it is not easy to damage.

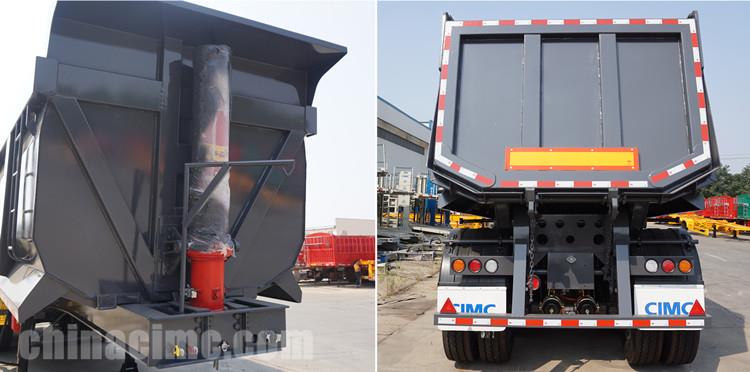

2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

Steel material: HG60 high-strength steel, high hardness of steel, can effectively prevent collision and avoid deformation of the cargo box.

3. Vice beam: with 4 units vice beam, which can make the bottom of the box better bearing capacity, and will not easily deform. The lattice structure of the side door makes the side door more solid.

3 Axle U Shape 33CBM End Dump Trailer for Sale in Mali

4. Cross balance beam: There is a balance beam at the front and rear of the main beam, which can better support the beam and is not easy to deform.

5. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the 3 axle dump trailer.

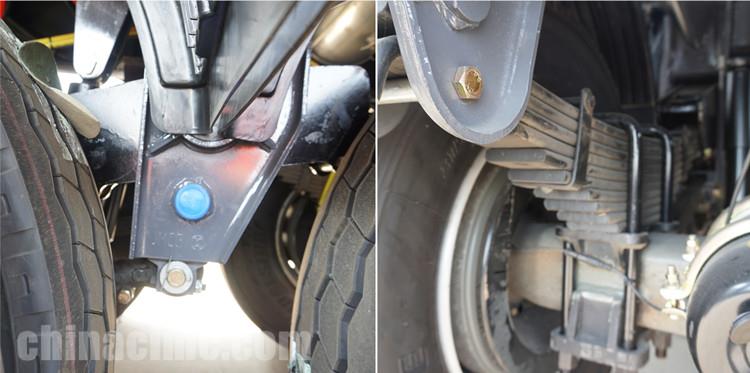

6. Leaf spring and suspension: The leaf spring is widened and thickened, the shock absorption effect is good, the suspension is widened, and the center pin is wider, which makes the end dump trailer more stable during driving.

7. Self-weight: We can emphasize the weight of our 33cbm dump trailer to our customers, weigh more weight and have a better carrying capacity.
