CIMC 3 Axle 40 Foot Flatbed Trailer for Sale in Madagascar

Just received feedback from CIMC factory. 2 units 3 axle 40 foot flatbed trailers are packed and ready to be shipped to Madagascar. We contacted the customer for the first time, sent pictures and videos, and the customer was very satisfied.

Customers find us through our website. This Madagascar customers know a lot about flatbed trailers, which are easy to communicate and have extremely high requirements. The customer requires 3 axle flatbed trailer to transport 40 foot containerr. We have customized drop side trailers for customers before, and many customers have this demand. Customers say CIMC is the most professional manufacturer.

CIMC 3 Axle 40 Foot Flatbed Trailer for Sale in Madagascar

Main Parts of 40 foot flatbed trailer:

1. Kingpin of 40 foot flatbed trailer

The 90 # traction pin represents the diameter of the traction pin is 90mm, and the material is mainly chromium alloy. CIMC flatbed trailer for sale near me and the tractor are all connected by it. It is connected to the traction seat of the main vehicle and also bears all the traction. It is an important component.

At present, the traction pins on the market are mainly divided into 4 types, assembly 50, assembly 90, welding 50, welding 90, users should choose according to different models and actual use.

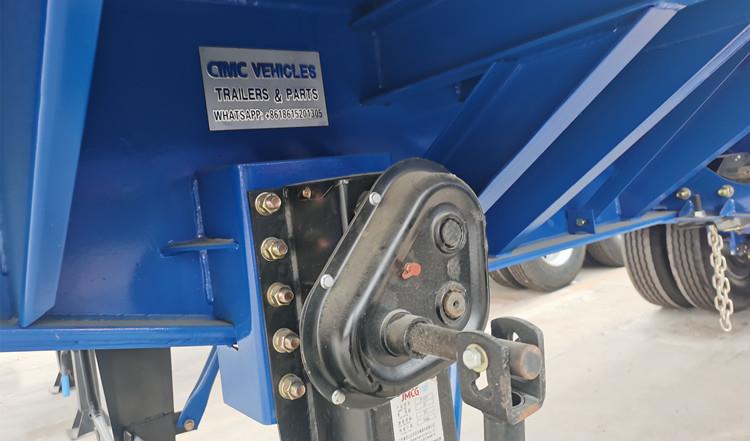

2. 3 axle flatbed trailer support device

Commonly known as outrigger. Using the principle of "standing timber jacking", it is located at the front end of the 3 axle flatbed trailer for sale frame for use after the container semi trailer is separated from the tractor. Classification of outriggers: Single-acting outriggers are operated separately on both sides, there are two cranks, and each gear has a car gearbox.

Linked outriggers are made from both sides while operating. There is only one crank, which is composed of one gearbox and one without.

The main components of the outrigger are two-speed gearbox, support sleeve, support rod, drive screw, and the support plate. The structure is very simple and the function is very important.

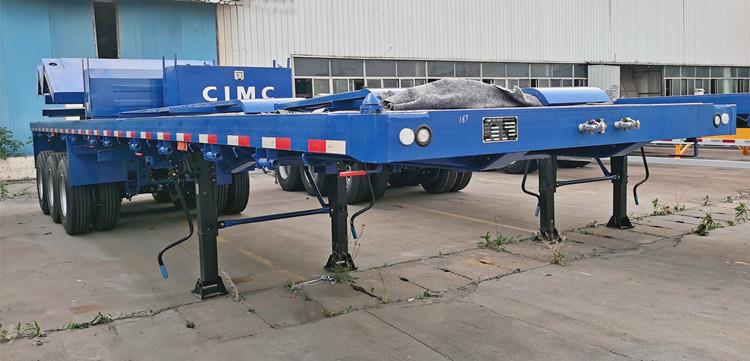

Detail of CIMC 3 Axle 40 Foot Flatbed Trailer for Sale

3. Suspension of CIMC flatbed trailer for sale

Steel plate suspension is our common leaf spring, its full name is series-connected leaf spring balance suspension. It is mainly composed of leaf springs, suspension bearings (commonly known as lifting lugs), connecting rods, U-bolts and other parts. The longitudinal force of the car body falls directly on an axle. The biggest advantage of this kind of suspension is low price, good reliability and easy maintenance. At present, more than 80% of ordinary flatbed semi trailer in China use leaf spring balanced suspension.

4. Braking system

Brake air chambers are round metal containers, located at each wheel, where compressed air is converted into mechanical force to apply the brakes and stop the vehicle.

Brake valve is used to control the braking of trucks or 3 axle flatbed trailer. It is suitable for flatbed trailer with dual-line brake system, and parking or emergency brakes are air-braking brakes. It has the function of automatically causing the 40 foot flatbed trailer brake when the control pipe connection of the trailer brake system is broken or leaking.

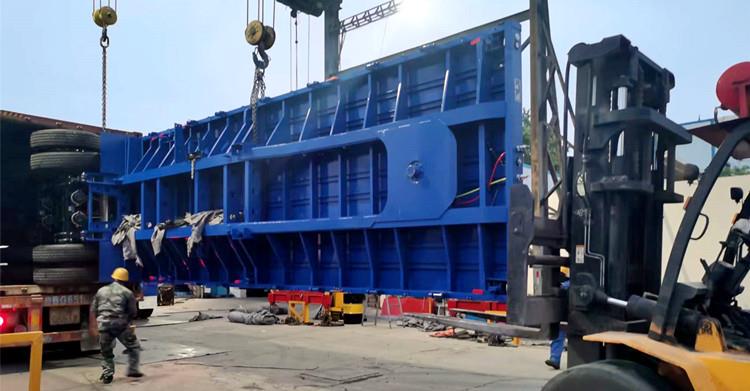

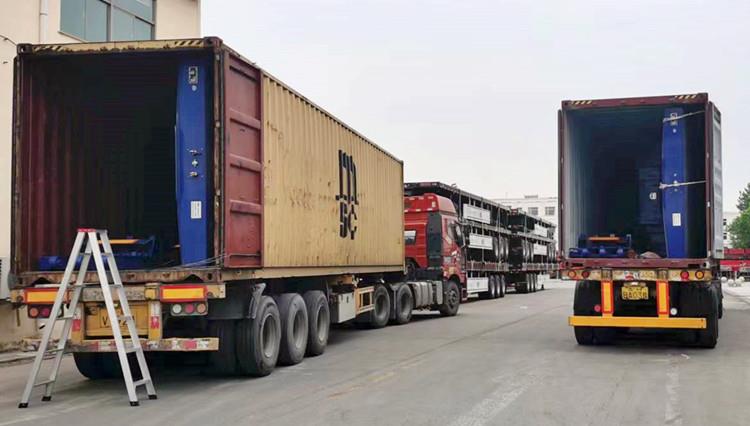

CIMC 3 Axle 40 Foot Flatbed Trailer will be sent to Madagascar

As a professional flatbed trailer manufactures, in the era of increasing efficiency, the delivery method we adopt is also an important reason to ensure a better customer experience. We recommend that customers choose container delivery. It can reduce cargo damage and poor cargo and improve cargo quality. Since the container is a solid and sealed box, the container itself is a solid package. After the goods are packed and sealed, there is no need to unpack and reload on the way. One ticket to the end, even after long-distance transportation or multiple replacements, it is not easy to damage the goods in the box. Container transportation can reduce cargo damage and cargo differences caused by theft, moisture, contamination, etc.
